Synthesis of shape controlled Cu2O and Cu2O/TiO2-QD composite for degradation of Congo red dye under visible-light irradiation

INTRODUCTION

Worldwide textile, paper, and dye industries release their effluents containing organic dyes, in freshwater. The dyes are non-biodegradable, highly poisonous, containing colored pigments that are harmful to living organisms [1]. Numerous remedial plans are developed for the decontamination purpose of wastewater and some of them are related to the consumption of energy [2]. A photocatalyst is a material that absorbs solar light which is a renewable energy source. In recent years semiconductor material as a photocatalyst has attracted enormous attention for energy storage and in environmental fields [3-4]. It has great potential to solve energy and pollution-related issues [5-7].

Cu₂O is a p-type semiconductor with a direct band gap of ~2.1 eV [8]. It is widely used as a photocatalyst due to its large abundance, non-toxicity, and easy preparation [9,10]. The attainment of semiconductor performance strongly depends on its structural factors viz., shape, size, and crystallization [11-14]. In the last few years, the shape and size-controlled Cu₂O was synthesized in the form of various polymorphs like nanocubes [15], octahedra  [16], nanowires [17], and cuboctahedra [18]. In addition to structural factors, the surface potential and electronic properties of the faces (110), (111), and (100) of Cu₂O nanostructures also have a positive impact on photocatalytic performance. These properties were analyzed by using high-resolution Kelvin probe force microscopy [19] and it showed the surface energy order as 110>111>100 [20]. Among these (110) is a higher surface energy facet with a greater density of Cu swinging bonds on the surface. In recent studies, it was suggested that the nanostructures with higher energy facets exposed were more active and two different facets, with slight differences in surface energy, could accelerate the separation of photoexcited electron-hole pairs [21]. So, shape-controlled heterostructures play an important role in boosting photocatalytic performance. Therefore, the synthesis of material with exposed facets is an effective strategy to enhance the photocatalytic activity of Cu₂O. Several research groups synthesized Cu₂O with exposed 110 facets but they used a rigorous synthesis process and formed a less stable catalyst. To get rid of this problem, Su and coauthors developed a new process of Cu₂O polyhedron synthesis [22].

Cuprous oxide has great potential in photocatalysis but it is suffering from photo corrosion induced by photo-reduction or photo-oxidation [23]. So, there is a need to synthesize a composite of Cu₂O with other semiconducting materials. The inner electrostatic field of p-n heterojunction enhances the separation efficiency of electron-hole pairs thereby increasing photocatalytic performance [24]. There are many Cu₂O semiconductor heterojunctions were reported such as WO₃/Cu₂O [25], Cu₂O /ZnO [26], and CuO / Cu₂O [27] having good to excellent degradation efficiency.

TiO₂ is one of the most effective n-type semiconductors with a band gap of 3.2 eV [28]. Since it is a cheap material and has high chemical stability and high charge mobility [29-31], it is widely used as a good photocatalyst. However, it has some limitations such as low absorption of solar light and fast recombination rate of electron-hole pairs [32]. Generation of p-n heterojunction would be a good solution to exceed the limitations. Also, the p-n heterojunction enhances photocatalytic performance due to suitable alignments of band gaps at the interface of the p-n junction [33]. There are many TiO₂ semiconductor heterojunctions were reported such as Nb₂O₅/TiO₂ [34], CdS/TiO₂ [35], and g-C₃N₄/TiO₂ [36] with their excellent activity. Recently, many authors reported the synthesis of Cu₂O/TiO₂ [37, 38]. Table 1. shows the Cu₂O and TiO_2-based heterojunctions and their photocatalytic potential.

In the present study, we have synthesized a Cu₂O/TiO₂-QD photocatalyst for the degradation of Congo Red dye [39, 40]. UV-DRS, XRD, SEM, and TEM techniques were used to characterize the synthesized material. The photocatalytic performance of Cu₂O/TiO₂-QD was examined for the rapid decolorization of Congo red dye under visible light exposure at room temperature. Also, the degradation performance of Congo red dye at various concentrations and pH was analyzed using a UV-VIS spectrophotometer. The stability of a photocatalyst was studied by the XRD technique after use.

We have developed a simple and effective method for the synthesis of truncated octahedron and octahedron-shaped Cu₂O by varying the amount of sodium hydroxide (0.1M).

EXPERIMENTAL

Reagents and Materials

Commercially available Copper chloride (CuCl₂, Merck, 99.00%), Sodium hydroxide (NaOH, Loba, 99.00%), Ti-nanoxide R/SP (TiO₂-QD, Sigma Aldrich, 99.00 %), Sodium dodecyl sulfate (SDS, Sigma Aldrich, 99.50%) and Congo red dye (CR, Sigma Aldrich, 99.00 %) were procured from Omkar Traders, Maharashtra, India and used without further purification.  The stock solution and solution of the respective concentrations of Congo red dye (2, 4, 6, 8, 9, 10, and 15 mg/L) were prepared using deionized water.

Preparation of Cu₂O

The copper (I) oxide nanoparticles were synthesized using the surfactant-assisted precipitation method. Herein, 7.5 ml, 0.1M Copper Chloride [CuCl₂] was taken in a round bottom flask containing 100 mL deionized water, and 1.3 g Sodium dodecyl sulfate [SDS] was added to the above solution. To obtain a precipitate solution Cu(OH)₂ with a pH of 8-9, 1M NaOH solution was slowly added. The variation in the amount of NaOH used is shown in Table 2.  Then after 0.1 M NH₂OH. The HCl solution was added under vigorous stirring and a color change was observed from blue to orange after the complete addition. The solution was kept in a water bath for 1 h and centrifuged at 5000 rpm for 5 min. The obtained precipitate was washed with enough water/ethanol (1:1) to remove the surfactant and dried at room temperature to obtain copper (I) oxide nanoparticles [20].

Synthesis of Cu2O/TiO2-QD Composite

10 mg copper (I) oxide nanoparticles in 10 ml ethanol were stirred for 30 min on a magnetic stirrer and commercially available TiO₂-QD sol was added to it to obtain the precipitate. The mixture was centrifuged at 8000 rpm and the obtained precipitate was filtered and washed several times using ethanol: water (1:1) solvent. To get Cu₂O/TiO₂-QD composite the obtained precipitate was dried at room temperature.

MATERIAL CHARACTERIZATION

Different analytical techniques were used to characterize the synthesized material.  The optical and band gap energy was studied by using UV-DRS analysis and it was performed on UV-DRS Shimadzu-1800. An X-ray diffraction analysis was carried out using a copper X-ray diffractometer (Cu Kα =0.1541 nm) operated at 40 kV and 40 mA. The morphology of the composite was analyzed using a Scanning Electron Microscope and Transmission Electron Microscope (Zeiss Libra 120).

Photocatalytic degradation experiments

The photocatalytic performance of the Cu₂O/TiO₂-QD composite was studied for the degradation of Congo red dye under visible light irradiation. The progress of the dye degradation was monitored by measuring the absorbance at regular time intervals using a UV-Vis spectrophotometer (Shimadzu-1800, India) at 498 nm. It was observed that the absorbance of the dye solution decreases with the increasing time of exposure, which indicates that the concentration of Congo red dye decreases. To estimate the degradation percentage of the photocatalyst following equation was used;

Where,  C₀ is the dye concentration at time zero, and C_t is the dye concentration at different times t.

RESULTS AND DISCUSSION

XRD Analysis

Figs.  2 (a) and 2(b) show the X-ray Diffractogram of Cuprous Oxide for cases (I) and (II) respectively. The sharp peaks at 2θ; 29.553, 36.417, 42.295, 52.452, 61.341, 69.566, 73.523, 77.320 corresponds to Miller indices (110), (111), (200), (211), (220), (310), (311) and (222) respectively, indicating the face-cantered cubic structure (JCPDS No. 05-0667). This Cu₂O crystal has a cubic crystal structure in which an oxygen atom is present at the center with Cu atoms occupying half of the tetrahedral sites. No diffraction peaks of Cu or CuO were observed which indicates the high purity of synthesized material.  Furthermore, the intensity ratio of the (200) and (111) peaks play an important role in differentiating their shapes and it was reported that the value of this ratio is lowered for truncated octahedron than octahedron shape [47] and our results reveal that the shape of particles in case (I) were of truncated octahedron shape and in case (II) corresponds to octahedron structure respectively. Also, the high intensity of peaks in XRD confirms the good crystallinity of particles. Fig. 2 (c) is the XRD pattern of TiO₂-QD and it exhibits the anatase phase (JCPDS No. 21-1272). The broad diffraction peaks in XRD were observed due to the small crystallite size of TiO₂-QDs. Fig. 2 (d) shows the XRD of Cu₂O, TiO_2, and Cu₂O/TiO₂-QDs composite.  In the Cu₂O/TiO₂-QD composite, no characteristic peak of anatase-TiO₂ was detected due to its low content and high dispersion in the composite.

The crystallite size of synthesized materials was calculated from XRD data using the Scherrer equation. The Scherrer equation can be written as:

Where, λ = 1.5406 Ả is the wavelength of Cu Kα radiations, k=0.9 is the shape factor, θ, and β are Bragg’s angle and FWHM respectively corresponding to the highly intense peak [48].

The calculated sizes of Cu₂O, TiO₂-QD, and Cu₂O/TiO₂-QD were found to be 60 nm, 12 nm, and 58 nm respectively. The result showed that the crystallite size of Cu₂O and Cu₂O/TiO₂-QD are almost similar as there is a dispersion of TiO₂-QD on the facets of Cu₂O and it does not alter the shape and size of Cu₂O.

SEM AND TEM analysis

The morphology and microstructure of Cu₂O were confirmed using the SEM technique. Fig. 3. shows SEM images of Cu₂O particles showing an average size of 0.5 µm and confirmed the truncated octahedron shape possessing 12 hexagonal (110) faces and 6 square (100) faces [49]. No other morphologies were detected in the SEM images which established the formation of mono-dispersed Cu₂O with shape-controlled morphology.  The hollow truncated octahedron shape case (I) of Cu₂O was also depicted by the TEM technique and it is shown in Fig. 4(a), these results are impeccable with SEM analysis (Fig. 3(b) and 3(c)).

Fig. 4(b, c) shows TEM images of Cu₂O (octahedron shape); case (II). The Cu₂O/TiO₂-QD composite is formed by loading TiO₂ nanoislands on copper oxide nanoparticles. Fig. 4(d, e) TEM images somehow demonstrate that Cu₂O/TiO₂-QD heterojunctions were successfully generated.

Uv-visible diffused Reflectance Spectra

The optical properties of the samples were investigated by UV-visible diffused reflectance spectra. Fig. 5, shows the diffuse reflectance spectra of samples of pure TiO₂, Cu₂O, and Cu₂O/TiO₂-QD composites. Pure TiO₂ showed absorption only in the UV region, while pure Cu₂O showed strong absorption in the visible region. Cu₂O/TiO₂-QD composite is not only showing strong absorption in the UV region but also the absorption was shifted to the visible region when the amount of Cu₂O increased. The composite showed greater absorbance, which may be because of good interaction between TiO₂ and Cu₂O, generating more stable hollow electron pairs thereby increasing photocatalytic performance.

Photocatalytic Study

Effect of pH

The effect of the pH of an aqueous solution on the CR dye was examined at different pH (4, 5, 6, 7, and 8) at 25˚C wherein the initial concentration of catalyst (150 mg/L) and concentration of CR dye (9mg/L) were taken. Fig. 6. showed that the degradation efficiency was increased from pH 4 to 6 whereas it was decreased at pH 7 and 8. The pH affects the surface charge of the photocatalyst. Every photocatalyst has a property of pHzpc (50). The photocatalytic surface will become positively charged at low pH than pHzpc which adsorb anionic molecules preferentially. pH beyond pHzpc of photocatalyst, results in negatively charged surface and adsorb cationic dye molecules (51). As CR dye is an anionic diazo dye it will show more photocatalytic efficiency at pH 6.

Effect of initial concentration of CR on effluent

The effect of various concentrations (2, 4, 6, 8, 9, 10, and 15 mg/L) of Congo red dye was studied at 25 ˚C and pH =6, wherein the initial concentration of catalyst was 150 mg/L. Fig. 7. revealed that the percentage degradation of the CR dye increases initially with an increase in the concentration of dye up to 9 mg/L. It is because of the availability of more adsorption sites on the photocatalyst surface which enhances the ability of adsorption of the CR molecules. These sites are saturated with time as they get covered with the adsorbed molecules causing a decline in the percentage of photodegradation with a further increase in concentration [52].

Effect of Cu₂O/TiO₂-QD dosage

The effect of Cu₂O/TiO₂-QD dose on the CR dye was examined using various catalyst concentrations (100, 150, 200 mg/L) at 25 ˚C and the initial concentration of CR dye was 9mg/L. Fig. 8. Shows that the degradation efficiency for the concentration 150 mg/L of Cu₂O/TiO₂-QD was greater than 100mg/L and 200mg/L concentrations. In general, the rate of photocatalytic degradation of organic pollutants increases with photocatalyst dose, due to an increase in active sites. But if the concentration of the catalyst increases beyond the optimum amount the scattering effect of light also increases thereby decreasing degradation efficiency [53]. So, in the present study, 150 mg/L of Cu₂O/TiO₂-QD catalyst concentration was selected as the optimum concentration for CR dye degradation.

Reusability of the photocatalyst

To prove the excellent efficiency of a prepared photocatalyst, the reusability of the photocatalyst was examined by performing recycling experiments. After the recycling experiment, the structural stability of the recycled photocatalyst was confirmed from XRD analysis wherein no change in XRD peak positions was observed (Fig. 9). It reveals the good stability of the photocatalyst.

Photocatalytic Degradation of CR dye  at optimum conditions

The present work deals with the photocatalytic study of shape-controlled Cu₂O/TiO₂-QD composite.  The photocatalytic experiments were conducted by exposing the catalyst and dye solution to the visible light source. Fig. 10 shows the degradation results of Congo red dye. A comparison between the photocatalytic performance of as-synthesized Cu₂O/TiO₂-QD composite and reported heterojunction revealed that the shape-controlled Cu₂O/TiO₂-QD composite has higher efficiency and capability of dye degradation [54-56].

Photocatalysis mechanism

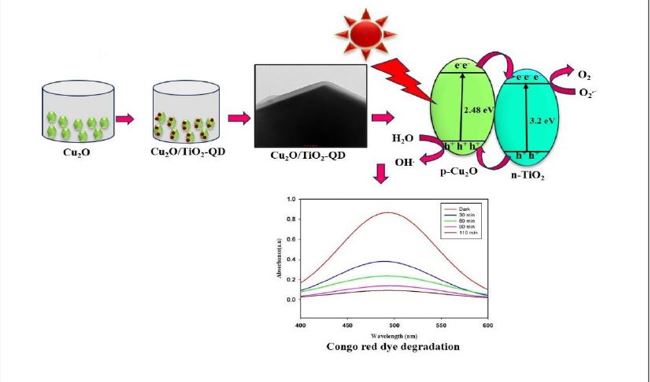

Fig. 11. indicates a schematic view of the charge transfer processes of a prepared photocatalyst under visible light irradiation. When visible light incident on the photocatalyst, the electrons-hole pairs get produced in which the photogenerated electrons in the conduction band transfer to the conduction band of TiO₂, and at the same time hole on the valence band of TiO₂ transfers to the valence band of Cu₂O [57]. Hence, the recombination rate of electron-hole pairs decreases, and the OH^. and O2^.- radicals carry out further degradation reactions. The proposed mechanism of degradation of CR dye is given in Fig. 11.

CONCLUSION

In this work, a simple precipitation method was used to synthesize truncated octahedron and octahedron Cu₂O and Cu₂O/TiO₂-QD composite. The morphological, structural, and optical properties of the as-prepared material were investigated by XRD, SEM, TEM, and UV-visible DRS techniques. TEM images clearly show that the TiO₂ was highly dispersed and firmly anchored on single crystals of copper oxide in Cu₂O/TiO₂-QD composite. The photocatalytic efficiency was investigated by studying factors like the influence of pH, catalyst dose, the concentration of dye, and reusability of the photocatalyst and it was found that 89% of Congo red dye degradation occurred at pH=6 within 110 minutes using 150 mg/L of catalyst concentration. For the first time, we have reported the greater degradation (89.00%) of Congo red dye by Cu₂O/TiO₂-QD photocatalyst. Experimental findings showed that Cu₂O/TiO₂-QD composite has a substantial ability to degrade CR dye, and its usage in the treatment of effluents containing this dye is suggested.

CONFLICT OF INTEREST

The authors hereby declare that there is no conflict of interest.
